PROJECT REPORT • COMMERCIAL VRF

Twenty-five indoor units delivered in four weeks.

A complete Mitsubishi Electric VRF air-conditioning installation for a healthcare facility in Bristol, coordinated through high-level exposed services and several changes in floor level.

25 indoor unitsMitsubishi ElectricR410A

Mitsubishi ducted air-conditioning units coordinated within an exposed-services interior — Air-conditioning equipment integrated within the exposed-services design

ProjectHealthcare facility, Bristol

Equipment25 Mitsubishi indoor units

RefrigerantR410A

ProgrammeFour weeks

THE PROJECT

A complete AC package for a new healthcare branch.

UK Cooling and Heating Services delivered the complete Mitsubishi Electric VRF air-conditioning installation. The project served a new healthcare facility with 25 indoor units connected through a coordinated R410A system.

The interior used exposed building services as part of its finished appearance. UKCH's indoor equipment, refrigeration pipework, condensate and controls therefore had to be positioned accurately alongside ductwork and other services installed by the wider project team.

High ceilings and differing floor levels added another layer of complexity. Pipework was brought between levels and concealed within the construction where required, while the complete installation was delivered in four weeks.

UKCH SCOPE

Full VRF air-conditioning installation and commissioning.

The surrounding exposed ductwork and architectural services formed part of the wider project; UKCH's responsibility was the complete air-conditioning package.

Indoor equipment

Positioning and installation of 25 Mitsubishi Electric indoor units throughout the new facility.

VRF plant

Installation and connection of the associated Mitsubishi Electric outdoor equipment.

Refrigeration pipework

Complete R410A distribution, including high-level routes, branch connections and changes in level.

Condensate & controls

Associated condensate services and air-conditioning controls installed as part of the package.

Testing & commissioning

Pressure testing, evacuation, charging and commissioning of the completed systems.

Trade coordination

Daily coordination around high ceilings, exposed services and multiple contractors working concurrently.

INSTALLATION DETAILS

Air-conditioning integrated into an exposed-services interior.

The photographs show UKCH's ducted indoor equipment coordinated with the wider ceiling design, together with the concealed refrigeration routes used between levels.

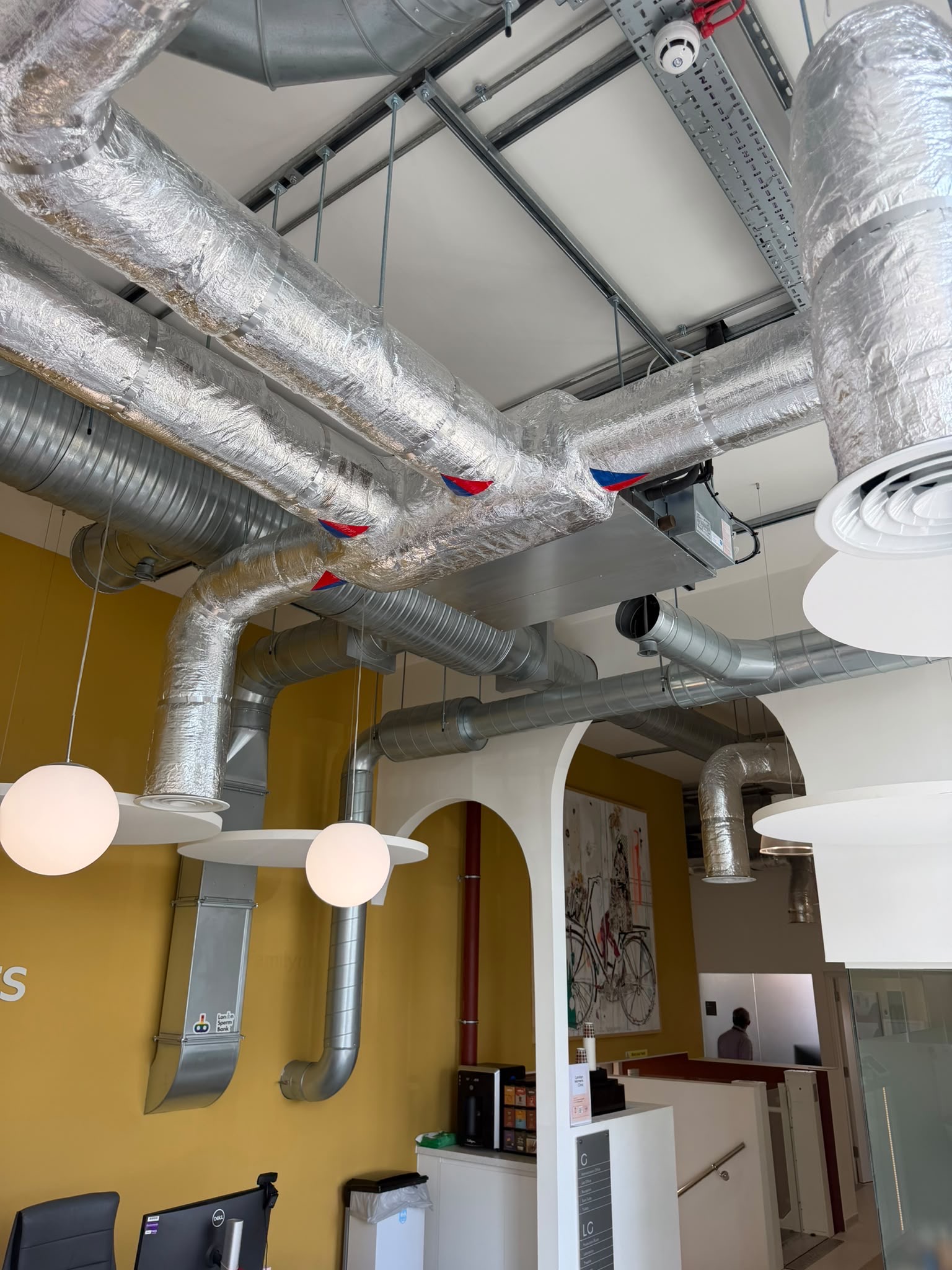

Ducted Mitsubishi air-conditioning units coordinated among exposed ceiling services — Indoor equipment coordinated with the finished exposed-services layout

Ducted air-conditioning units positioned within an exposed commercial interior — High-level installation within the completed healthcare interior

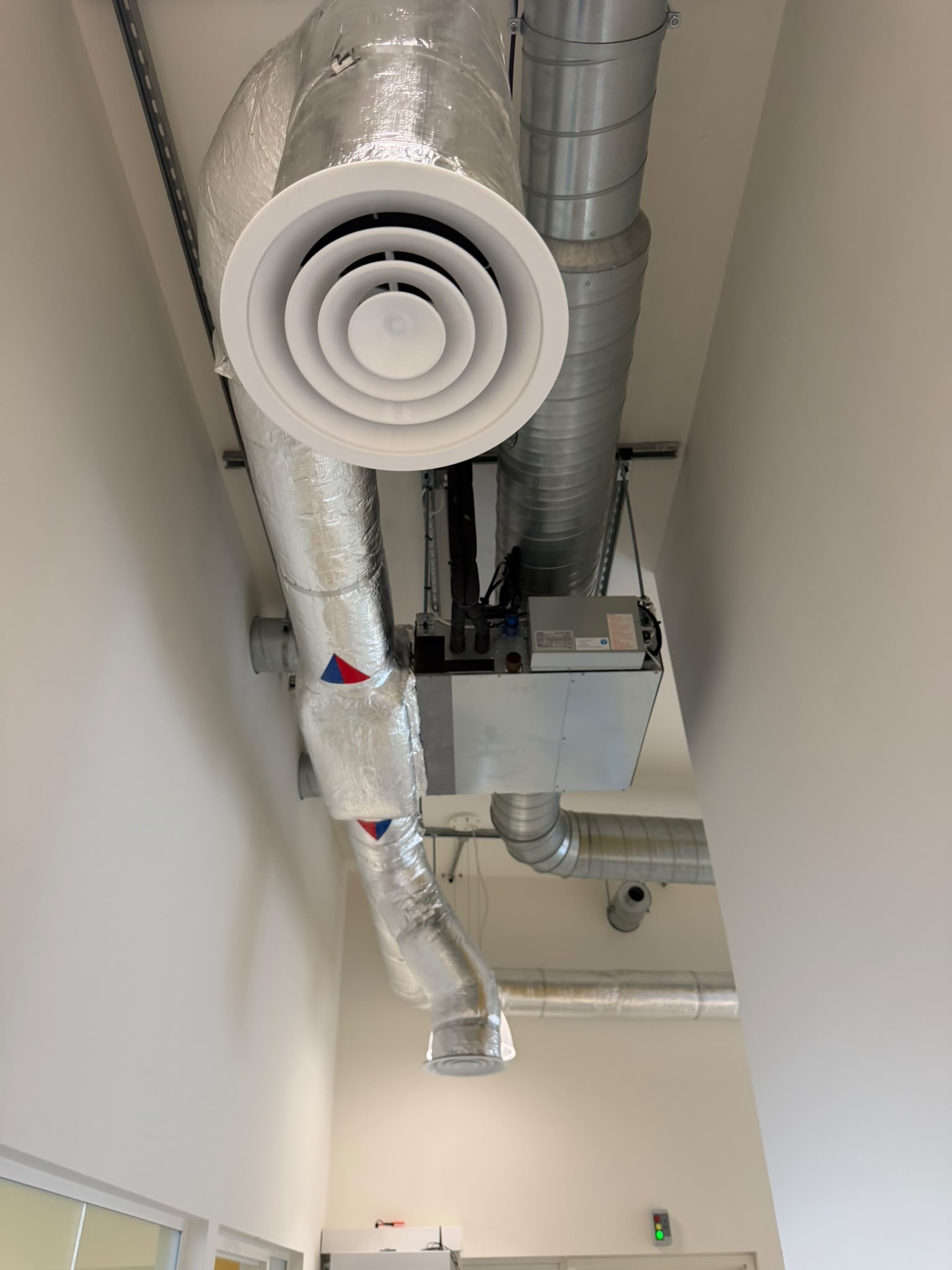

Mitsubishi ducted indoor air-conditioning unit installed above a corridor — Ducted indoor equipment positioned for future service access

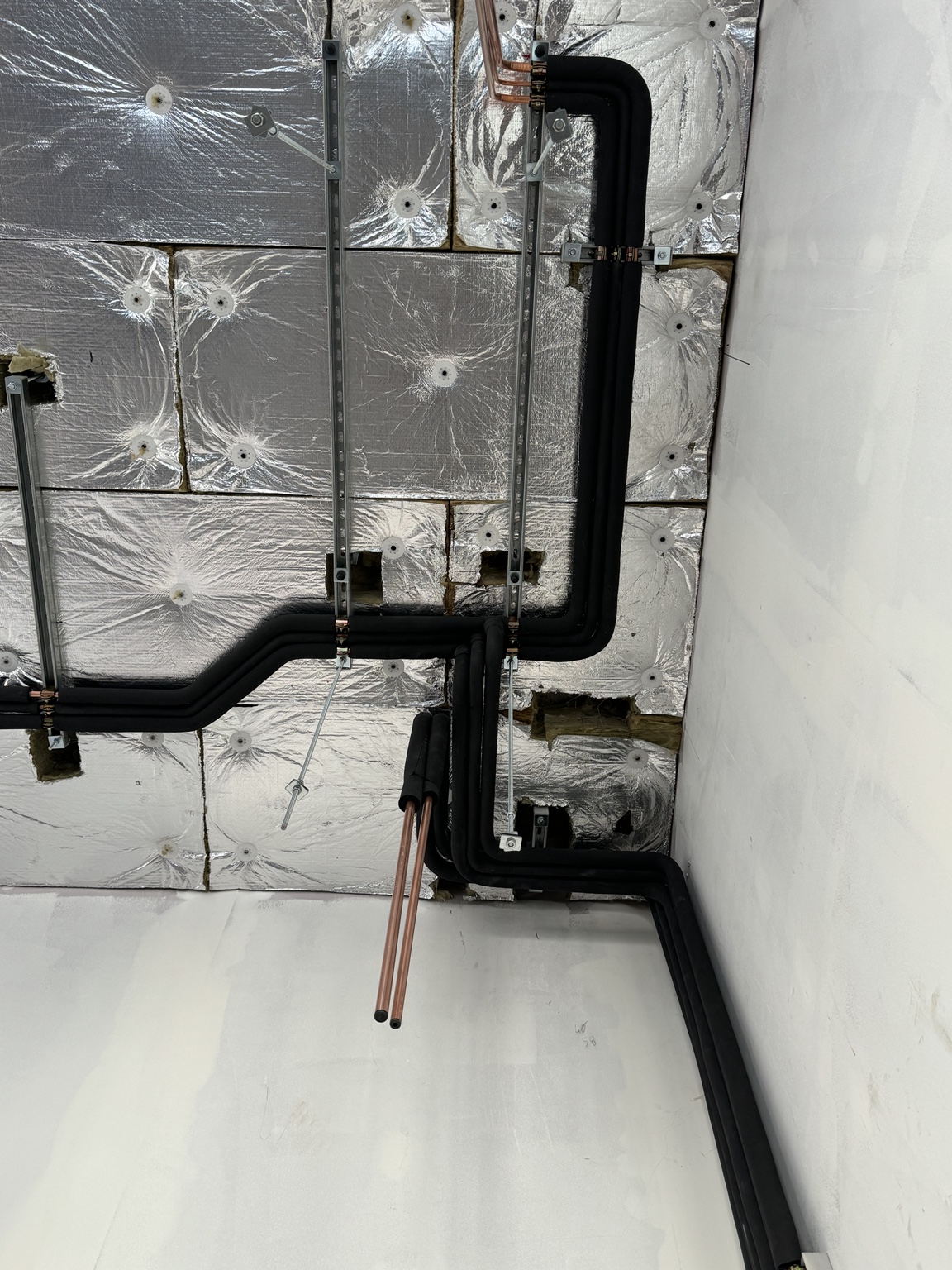

Neatly supported insulated VRF refrigeration pipework changing level through a ceiling void — Refrigeration services routed between different building levels

THE RESULT

A coordinated 25-unit installation completed in four weeks.

The completed system provides the new facility with a fully commissioned Mitsubishi Electric VRF solution. Careful route planning and close coordination kept the air-conditioning package aligned with the exposed interior, changes in level and fast-moving construction programme.

Discuss a similar project
